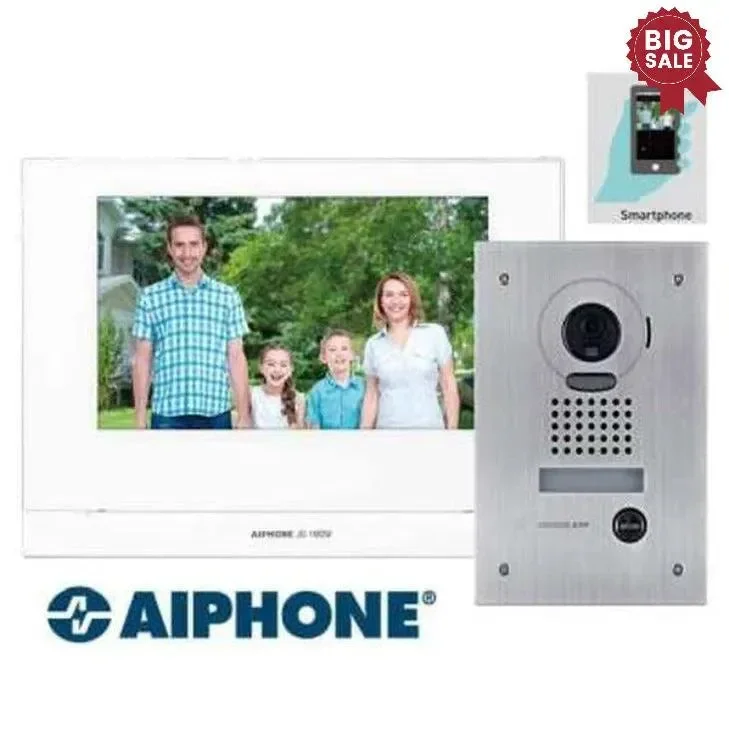

Aiphone JOS-1FW Intercom Kit Smartphone Connection 7" Monitor Flush Mounted Door Station

Advanced Intercom Solution Offering Mobile Connectivity and Intuitive Touchscreen Operation for Enhanced Security and Ease of Use

The Aiphone JOS-1FW Smartphone Intercom Kit is a high-quality, hands-free video intercom solution, designed to enhance security and convenience for homes, offices, and gated properties.

Featuring a large 7-inch touchscreen monitor, two-way audio communication, and mobile connectivity via the Intercom App Type B, this system enables real-time visitor verification and remote door unlocking from anywhere.

With Wi-Fi and network integration, expandable system support, and vandal-resistant construction, the JOS-1FW offers seamless security monitoring with easy installation.

---

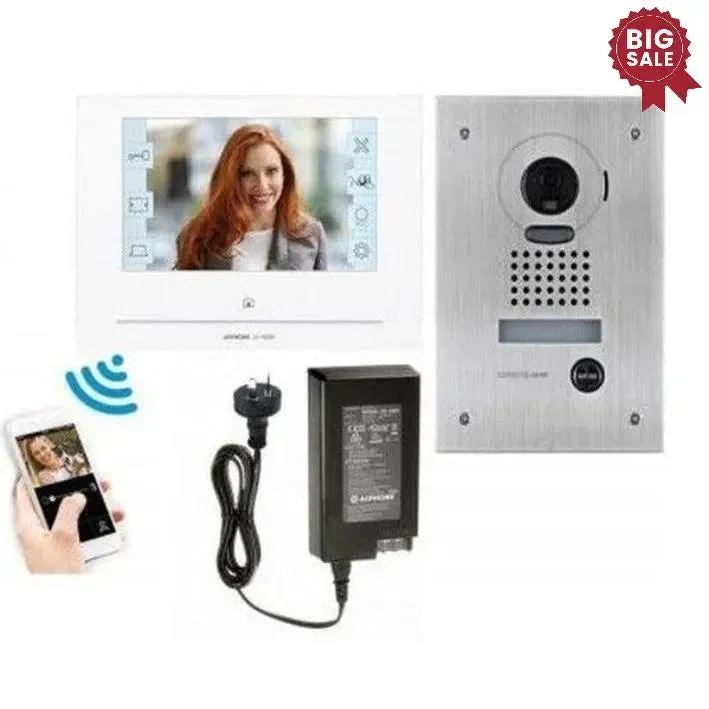

What’s in the Intercom Kit?

📦 Complete System Includes:
✔ 1× 7" Touchscreen Intercom Monitor (JO-1MDW)
✔ 1× Flush-Mounted Intercom Door Station (JO-DVF)
✔ 1× Power Supply (PS-1820UL)

---

Key Features

Smartphone Integration with Mobile Control

✔ Answer Video Calls & Unlock Doors from Your Smartphone
✔ View Live Feed from the Door Station Anytime, Anywhere

Large 7-Inch Touchscreen Monitor for Effortless Operation

✔ High-Resolution LCD for Clear Image Viewing
✔ Intuitive User Interface for Easy Navigation
✔ Stores & Plays Back Recorded Calls with MicroSD Expansion

Secure & Vandal-Resistant Door Station

✔ Die-Cast Zinc, Surface-Mounted Video Door Station
✔ Built-in 1/4" CMOS Camera for Clear Video Capture
✔ Automatic White LED Light for Night Vision Clarity

Expandable System for Advanced Access Control

✔ Supports Up to 8 Smartphones or Tablets for Remote Viewing
✔ Expandable with 1 Additional Door Station & 2 Indoor Room Stations
✔ Optional Ringer Extender for Enhanced Alerts

Durable, Weatherproof, & Reliable Design

✔ IP54-Rated Outdoor Unit for Water & Dust Resistance
✔ IK07 Impact Rating for Enhanced Durability

Technical Specifications

Indoor Monitor (AI-JO-1MDW)

• Display: 7” TFT LCD Touchscreen
• Resolution: 1024 × 600
• Internal Call Storage: Up to 10 Calls (Expandable with MicroSD Card, 32GB Max.)
• Power Supply: 12V DC / Standard PoE (IEEE802.3af)
• Communication: Hands-Free / Push-to-Talk (PTT) Mode
• Network Connectivity: Wi-Fi & Ethernet (RJ-45, 10/100 Mbps)

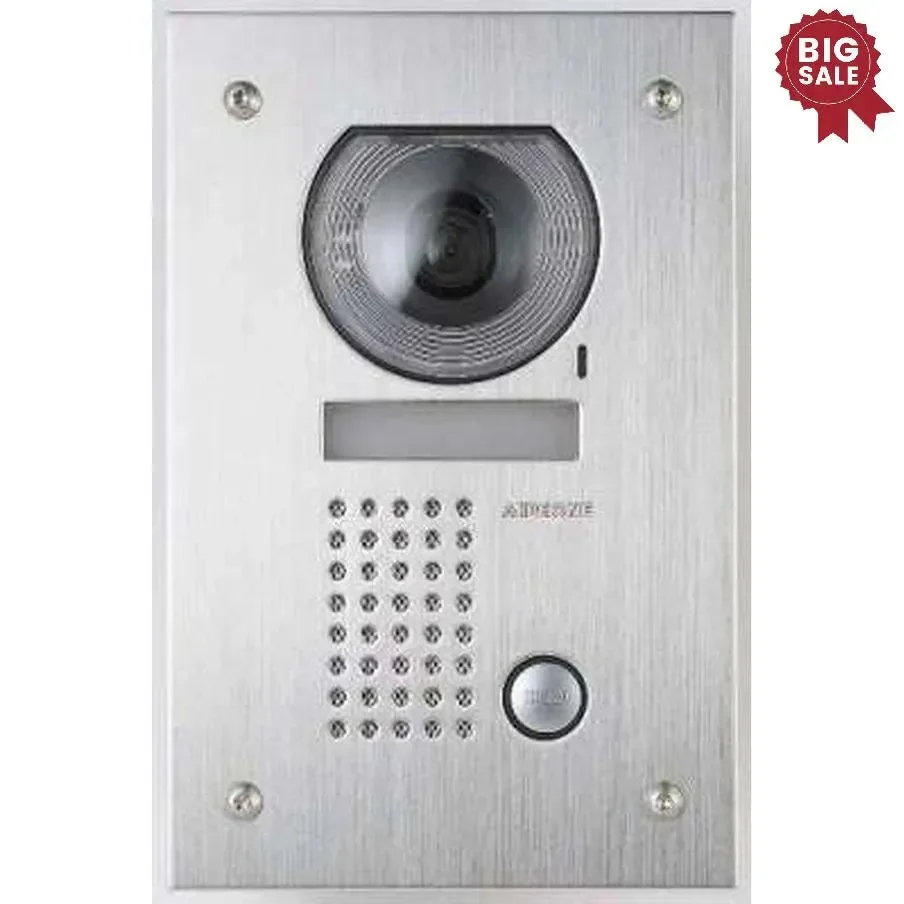

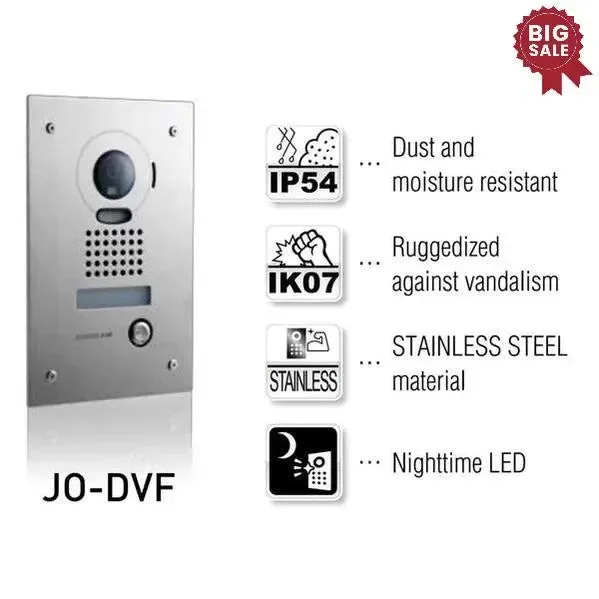

Outdoor Door Station (AI-JO-DVF)

• Camera: 1/4” CMOS Color Sensor
• Resolution: 720 × 576
• Night Vision: White LED Light for Enhanced Visibility
• Build Material: Die-Cast Zinc with Stainless Steel Faceplate
• Weather Protection: IP54-Rated, Impact Resistant (IK07)
• Mounting: Flush Mounting
• Power Supply: Powered by Indoor Monitor

Power Supply (PS-1820UL)

• Input Voltage: 100-240V AC, 50/60Hz
• Output Voltage: 18V DC, 2A

Remote Access with Aiphone Intercom App (Type B)

📲 Receive Video Calls & Unlock Doors from Your Smartphone
📲 Monitor Live Feed from the Door Station & Connected Cameras
📲 Playback Recorded Calls from the On-Site Monitor or Mobile App
📲 Control & Configure the Intercom System Remotely

Why Choose the Aiphone JOS-1FW Smartphone Intercom?

The Aiphone JOS-1FW is a feature-rich, smartphone-compatible intercom system, perfect for residential and business security applications. With a large 7-inch touchscreen, mobile app integration, and vandal-resistant construction, this system provides modern security with enhanced access control and convenience.
