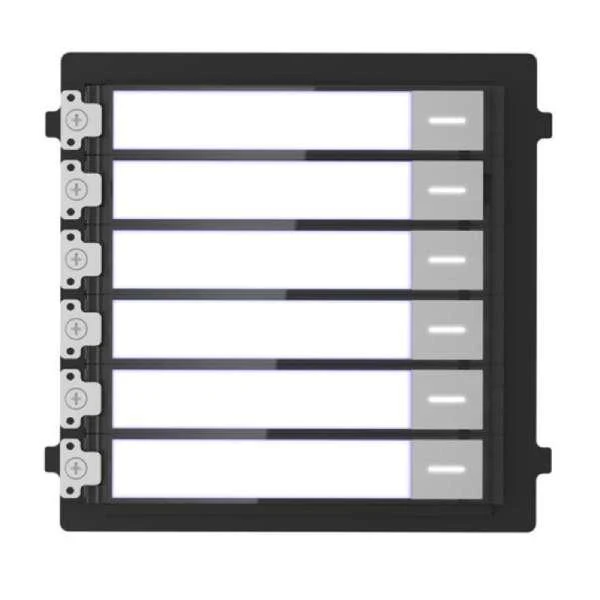

Hikvision DS-KD-KK IP Door Station Intercom Gen 2 Nametag Module

Modular door station unit, with 6 call buttons. Name tag customisation makes it easier for visitors to verify they have the correct address.

Model: DS-KD-KK

Door Station Modular

• Modular door station Nametag unit, needs mounting bracket
• 6 call buttons, including 4 button covers, IP65
• Dial the resident at one-touch
• Backlight compensation
• Easy and extend

Specifications

• Power Consumption: ≤ 2 W
• Button: 6
• Installation: Flush mounting, surface mounting
• Protective Level: IP65
• Dimensions: 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95\" × 1.33\")Power Supply Method: 12 VDC (powered for other module)
• Working Temperature: -40° C to +55° C(-40° F to 131° F)
• Working Humidity: 10% to 95%
• With package: 438 g
• Without package: 190 g

Downloads

Hikvision IP Door Station, Nametag Module, DS-KD-KK-Datasheet

Warranty

Hikvision Intercom products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
