Kocom Door Station 4 wire, KOCKCMC30(D1)

The Kocom door station KOCKCMC30(D1) is surface mounted to outside of premises, encased metal and is a simple 4 wire installation, it is surface mounted with night vision camera white LED's and a high resolution image.

Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354

Model: KOCKCMC30(D1)

When it comes to ensuring the safety and security of your home and family, your options are not just limited to alarm systems and CCTV.

• Kocom intercoms give peace of mind to Australian homeowners
• Improve control and security in your home with just one touch though
• Kocom's latest range of communication solutions.
• Encased with refined designs and intelligent features,
• Kocom's award winning range of intercom and outdoor stations are assured to compete any home.
• Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354

Features

• House call by household
• House & Lobby Call
• High-resolution image
• Power : DC 12V +- 1V ( Power from monitor)
• Power consumption :Max. 2.5 W Image format : 270,000 (EIA) / 320,000 (CCIR) pixels

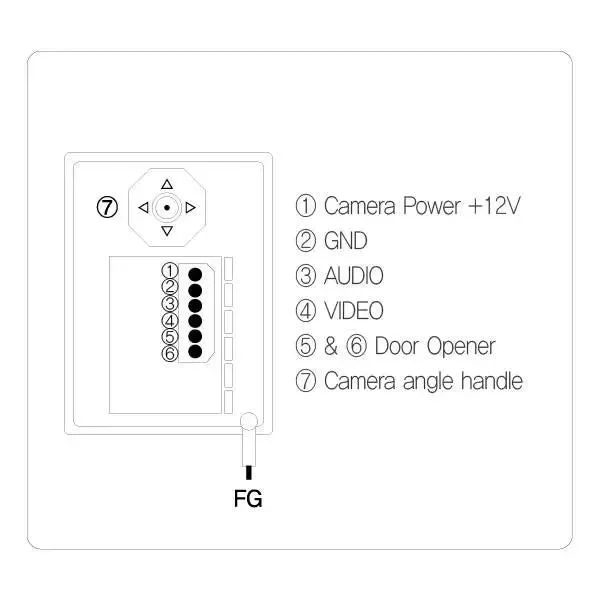

• Writing : 4 Wire Camera
• Colour TV system : NTSC/PAL Lens: F :2.0, f = 3.6mm
• Lighting :White LED ON Camera angle120°
• Body material :Metal aluminium illumination :0.1 lux on the object (IR LED ON)
• Mount type : Surface mount Door lock connection :
• Camera Dimension (mm) : 110(W)×158(H)×39(D)
• Not compatible to old generation Monitor such as KCVD374, KCVD504, KCVD354

Downloads

Kocom Door Station 4 wire, KC-MC30 Brochure

Specifications

Power	DC 12V±1V(power from monitor)
Power Consumption	Max. 3W
Wiring	4 Wire
Body Material	Metal
Mount Type	Surface mount
Camera Angle	100˚(Angle Adjustable)
Min, Illumination	0.1 lux(LED ON)
Camera pixel	2 million pixel
Dimension	110(W) x 158(H) x 39(D)mm
