Hills Reliance NX Remote Control Kit with 2 x Stainless steel remotes, S1890A

The Hills Reliance NX Remote Control Kit comes complete with wireless receiver and two x stainless steel remotes with slide cover. Compatible with the Hills alarm control panels.

Model: S1890A

NX Remote Control Kit with 2 x Stainless steel remotes

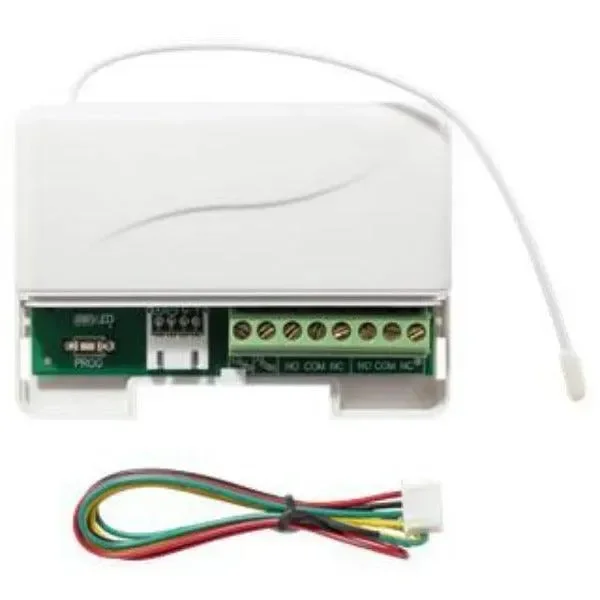

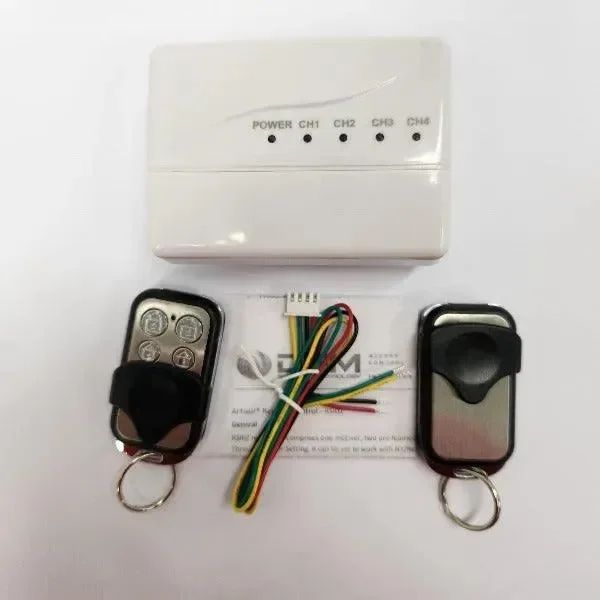

RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting plate. Through Jumper Setting,

It can be set to work with NX/Reliance alarm panels to operate Arm (away/stay), Disarm and Panic via the keypad data bus. The receiver is also equipped with two relays that can be used to operate other devices such as garage door

Specifications

Remote

• Operating Range: A minimum of 50m (open air)
• 433.92 MHz Keeloq rolling code: 4.3 billion combination; SAW resonator (filter) locked (+/- 75KHz)
• Transmitting power: <10mW
• Operating Voltage: 6 V powered by 2 x 3 VDC lithium batteries
• Battery Life: 3 years under normal operating conditions
• Current: <1uA standby; 12mA max.
• Low battery indication: LED on the remote flashes when the button is pressed
• Auto shutoff: the remote stops transmitting if a button gets pressed for 25s.
• 1 year warranty

Receiver

• Operating voltage: 9-15VDC; Current: 10mA Standby; 100mA max.

Outputs:

• Data – Arm (away/stay), Disarm and Panic. 4-wire harness provided
• Two programmable relay outputs; SPDT; rating 1A 24VDC/120VAC
• Chirp & Flash “Switch to Ground” outputs for Arm and Disarm notification
• Standard capacity: 25 remotes
• Mounting plate provided for quick receiver installation

Hills Reliance Alarm remote Kit Compatible with:

• Hills Reliance 8
• Hills Reliance 12
• Hills Reliance 128
• DAS alarm systems
• Hills Reliance NX4 alarms
• Hills Reliance NX8 alarms
• Hills Reliance NX16 alarm systems
