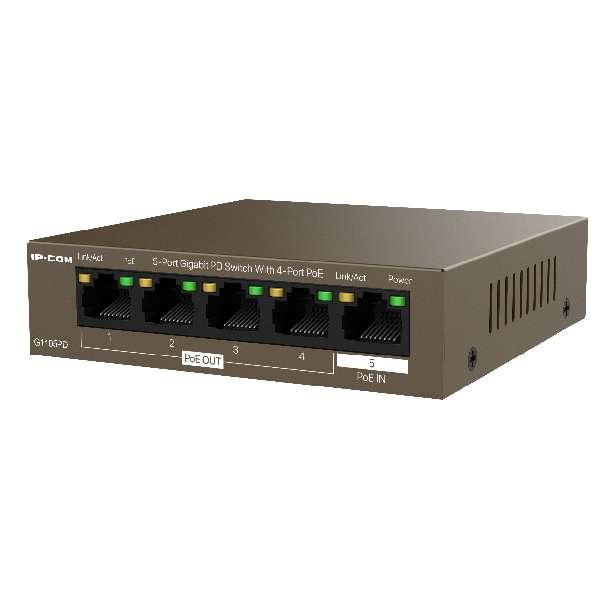

5-Port Gigabit PD Switch With 4-Port PoE, G1105PD

Featuring low cost, high performance and plug & play, the PoE switch G1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges.

Model : G1105PD

• Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at.
• The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.

Hardware specifications

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Transmission media	10Base-T: CAT3 UTP or better 100Base-TX: CAT5 UTP or better 1000Base-T: CAT5e UTP or better
Dimensions	100 mm x 100 mm x 26 mm(L x W x H)
Product material	Metal
Fan	Fanless
LED indicators	1 x Power LED indicator 4 x PoE LED indicator 5 x Link/Act LED indicator

Service port description
Fixed ports	5 x 10/100/1000 Mbps auto-negotiation RJ45 ports (supporting Auto MDI/MDIX)
PoE out	PoE standard:IEEE 802.3af PoE power cable core:8 cores: voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is - PoE port:1 - 4 Maximum output power of a single port:15.4 W Maximum output power of the switch:30 W
PoE in	PoE in standard:IEEE802.3af, IEEE802.3at PoE in port:5 PoE input:50 - 57V DC, 0.6A
Protection	Port lightning protection: 6 kV Power lightning protection: No Electrostatic protection: - Air discharge: ±8 kV - Contact discharge: ±6 kV
